SAP Router Configuration

by Unknown on 02:51:00

SAP Router Configuration

1 1. Download the latest saprouter from the Marketplace

Ø Login to the SAP Support Portal with the S-user ID which is assigned to your installation.

Ø Use the latest SAProuter version, which can be downloaded from the SAP Software Download Center.

Ø Support Packages & Patches

Ø A-Z Alphabetical List of Products

Ø S

Ø SAPROUTER

Ø SAPROUTER (latest version)

Ø your preferred O.S. version

Ø saprouter_XXX-XXXXXXXX.sar

2. Download the latest SAP Cryptographic Library from the SAP Software Download Area.

Ø Support Packages & Patches

Ø A-Z Alphabetical List of Products

Ø S

Ø SAPCRYPTOLIB

Ø COMMONCRYPTOLIB (latest version)

Ø your preferred O.S. version

Ø SAPCRYPTOLIBP_XXXX-XXXXXXXX.SAR

3.Executing the commands

· SAPCAR -xvf saprouter_XXX-XXXXXXXX.sar will unpack the following files:

saprouter[.exe]

niping[.ex

· SAPCAR -xvf SAPCRYPTOLIBP_XXXX-XXXXXXXX.SAR will unpack the following files:

[lib]sapcrypto.[dll|so|sl]

sapgenpse[.exe]

4.Create the new folder

(e.g. /usr/sap/saprouter). Copy the file that we are extract through SAPCAR.

5.Set the environment variables for SNC_LIB and SECUDIR

My computer (right click)---> properties---> advanced system setting ----> advanced ---> environment variables ---> new

SECUDIR---> path till saprouter folder

SNC_LIB----> path till sapcrypto.dll

6. Create saprouttab file in saprouter folder in file format

7. Download the Distinguished Name from the SMP.
www.service.sap.com/saprouter-sncadd

Distinguished Name------> CN=pamserver, OU=0001400618, OU=SAProuter, O=SAP, C=DE

8. Create “certreq” file

Now create a “certreq” file in the file format in saprouter folder

9.Request for router license

Enter the command on the command prompt

Sapgenpse get_pse -v -r certreq -p local.pse “<Distinguished Name>”

eg : Sapgenpse get_pse -v -r certreq -p local.pse “CN=pamserver, OU=0001400618, OU=SAProuter, O=SAP, C=DE”

Now open the certreq file with notepad

Copy the text and past it into the marketplace

Click on Request Certificate

Copy the text in the executed page

10. Create “srcert” file in the file format in the saprouter folder

Past the copyed text in the “srcert” file

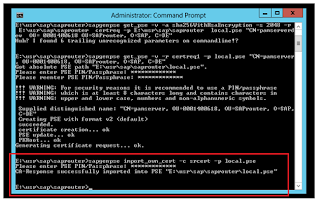

11. Import the certificate using the below command

sapgenpse import_own_cert -c srcert -p local.pse

Confirm that the import was successful.

e.g: CA-Response successfully imported into PSE "/usr/sap/saprouter2/local.pse"

9. Create credentials for your PSE and secure your credentials file

sapgenpse seclogin -p local.pse -O <user_for _SAProuter>

eg : sapgenpse seclogin –p E:\usr\sap\saprouter\local.pse –O administrator

Type in your PIN/Passphrase when prompted

This generates the cred_v2 file

10. check the command

sapgenpse get_my_name -v -n Issuer

This should result to

Issuer : CN=SAProuter CA, OU=SAProuter, O=SAP Trust Community II, C=DE

11.Now we need to maintain the details in the saprouttab file

Model from SAP Marketplace :

Eg:

12.Download the CA certificate from SAP note 2131531.

https://service.sap.com/sap/support/notes/2131531

Download the object from the sap note. (last of the not)

Copy smprootca.der in to the saprouter folder

Import the certificate

sapgenpse maintain_pk -a smprootca.der -p local.pse

13. SAProuter service creation

Enter this command to the saprouter service creation

sc.exe create SAPRouter binPath= "saprouter.exe service -r -W 60000 -R saprouttab -K ^p:CN=pamserver, OU=0001400618, OU=SAProuter, O=SAP, C=DE^" start= auto obj= "NT AUTHORITY\LocalService"

Eg: sc.exe create SAPRouter binPath= "E:\usr\sap\saprouter\saprouter.exe service -r -W 60000 -R E:\usr\sap\saprouter\saprouttab -K ^p:CN=pamserver, OU=0001400618, OU=SAProuter, O=SAP, C=DE^" start= auto obj= "NT AUTHORITY\LocalService"
